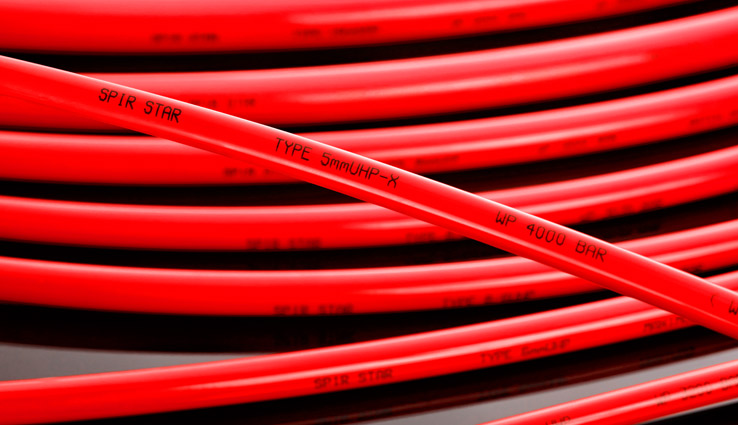

UHP hose assemblies up to 4000 bar

Production of ultra high pressure (UHP) hose assemblies up to 4000 bar

Autaba offer UHP assembly services from our in-house workshop, where we produce complete flexible hose assemblies (hoses with fittings) with a working pressure up to 4000 bar. The production is performed by certified personnel, from tightly controlled materials. All hose assemblies are pressure tested before they are delivered to the customer.

Example:

5/4 HT (code: SS-HT-05-4HT)

Hose inner diameter DN 5 [mm] ，Number of main braids (4)

Versions:

DC1 – PA/PUR double outer layer
H – reinforced version, higher working pressure
HT – for operation at high temperature, high chemical resistance
K – additional braid in outer layer
M – for methanol service, inner layer made of PA11
OK – additional stainless steel outer braid
PPA – PVDF inner layer, polyamide outer layer
R – reinforced thicker outer layer
W – two additional layers of special spiral wire
WL – increased flexibility W version
