Hydraulic Fluid System Thread Identification Sheet

RonWang7 months ago (04-21)工业技术 INDS438

From tapered pipe threads like NPT and BSPT to flared seat threads such as JIC and SAE 45°, and O-ring seal threads including ORFS and ORB, each type offers unique sealing mechanisms and is suited to specific applications.

Parker Series Fitting Thread Indentification Step by step

The thread identification given by Parker engineers includes two parts: the oil port and the end of the pipe.

  • Step 1 Determine sela type

  • Step 2 Measure Thread Diameter (Confirm with Char)

  • Step 3 Confirm Thread Pitch (TPI or Thread Pitch)

Tube Ended

Parker Tube End

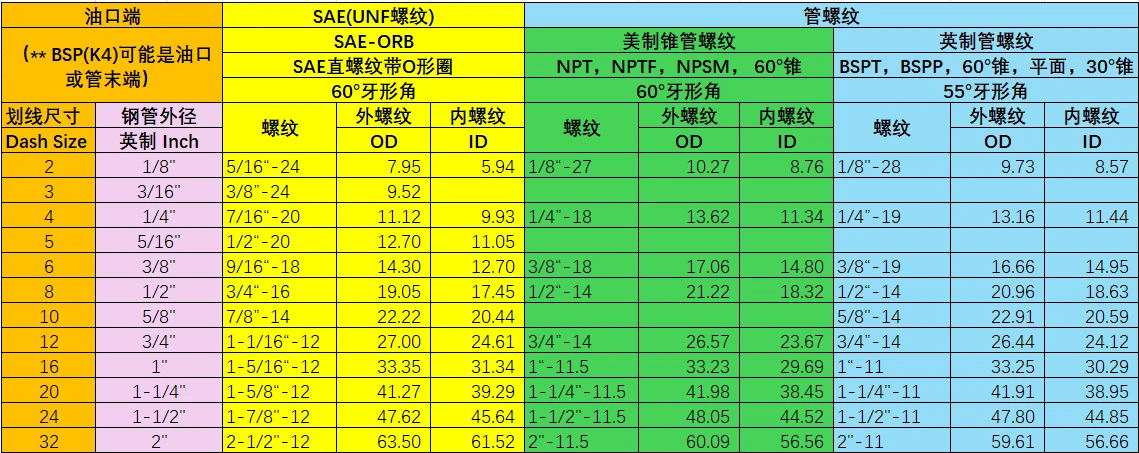

Oil Port Ended

Oil End

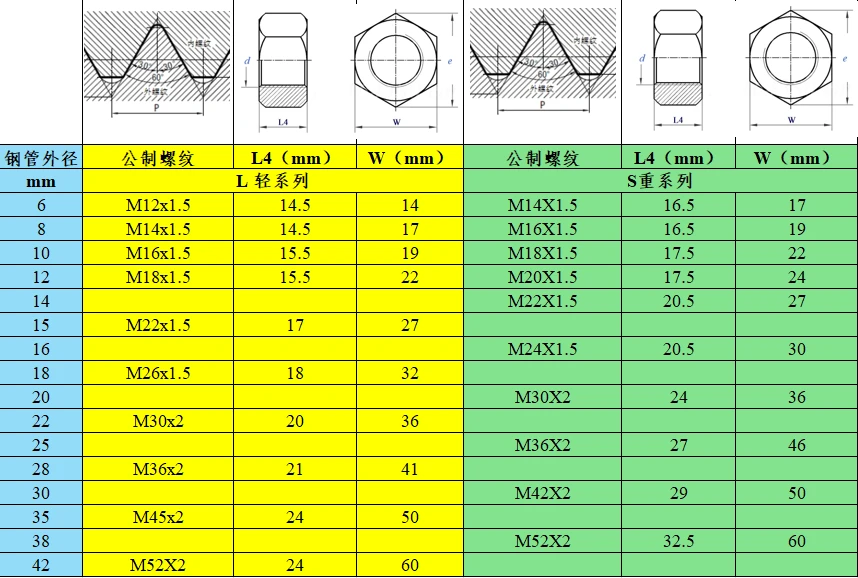

Metric and Flange Fitting

MetricFlange

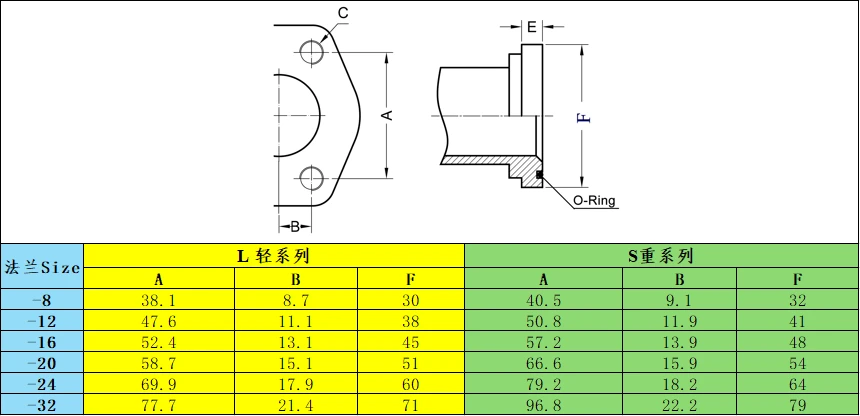

Flange fitting


Thread Indentification Guide

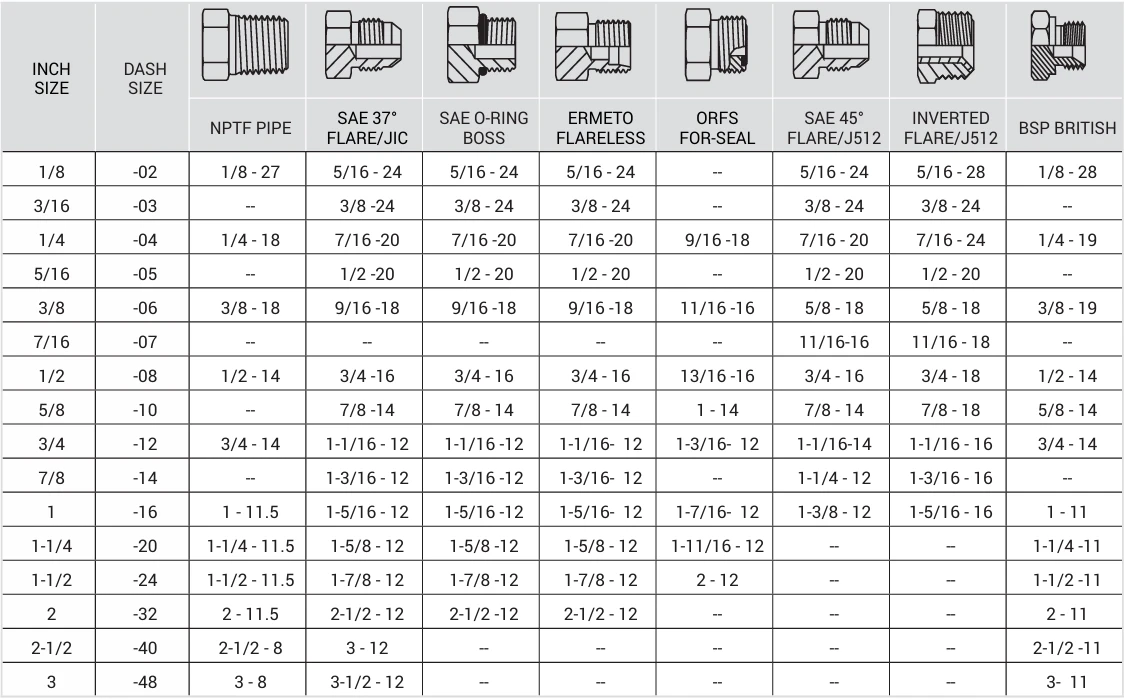

Inch Thread

thread identify

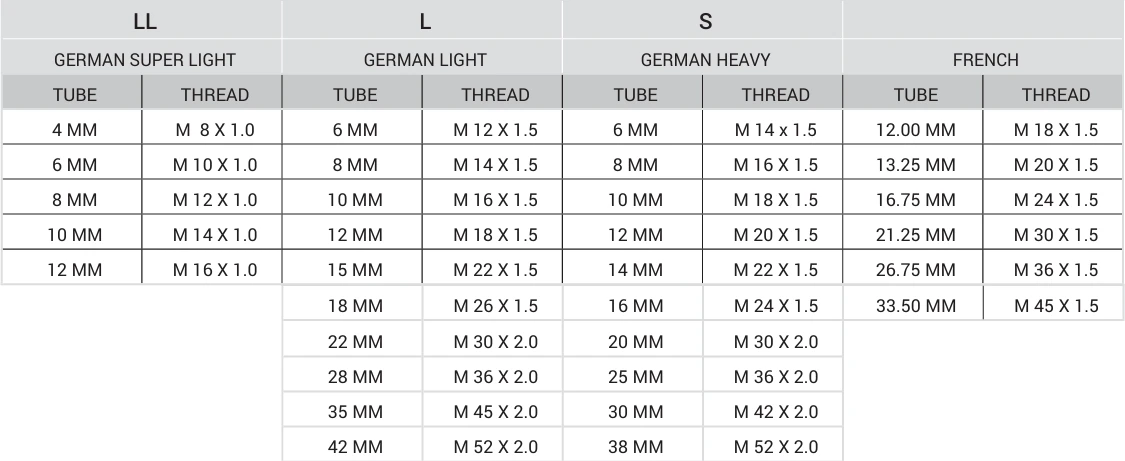

Metric Thread

thread identify metric
