​Arduino Project 046 - Based Security System by Arduino with Lcd Display

RonWang6个月前 (12-12)电子编程382

Arduino Project 046 - Based Security System by Arduino with Lcd Display

Arduino RFID LCD Display Circuit

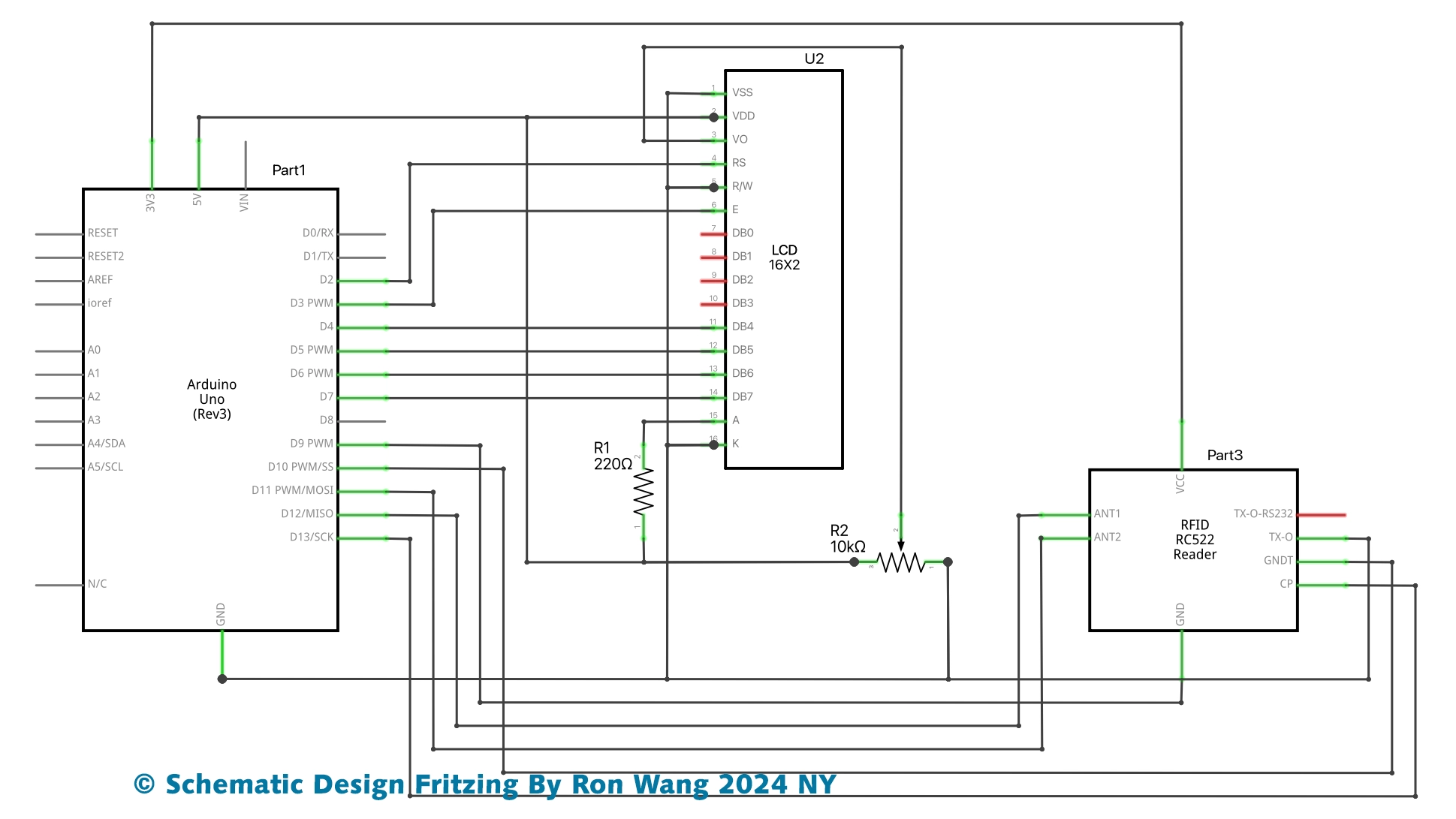

Arduino RFID LCD Display Schematic

/*
 * Project 046 Based Security System by Arduino with Lcd Display
 *                   RFID-RC522
 */
 #include <SPI.h>
 #include <MFRC522.h>
 #include <LiquidCrystal.h>
 #define SS_PIN 10
 #define RST_PIN 9
 MFRC522 mfrc522(SS_PIN, RST_PIN);  // Create MFRC522 instance.
 #define beep_pin 8
 LiquidCrystal lcd(2, 3, 4, 5, 6, 7);
 void setup()
 {
  Serial.begin(9600);  // Initiate a serial communication
  pinMode(beep_pin,OUTPUT);
  digitalWrite(beep_pin,LOW);
  lcd.begin(16, 2);
  lcd.setCursor(3, 1);
  lcd.print("Welcome!!");
  lcd.setCursor(0, 0);
  lcd.print("Circuit is Ready");
  delay(1500);
  lcd.clear();
  SPI.begin();   // Initiate SPI bus
  mfrc522.PCD_Init();  // Initiate MFRC522
  Serial.println("Put your card to the reader...");
  Serial.println();
 }
 void loop()
 {
  digitalWrite(beep_pin, LOW);
  lcd.clear();
  lcd.setCursor(0, 0);
  lcd.print("Put your card to");
  lcd.setCursor(0, 1);
  lcd.print("the reader......");
  delay(300);
  // Look for new cards
  if ( ! mfrc522.PICC_IsNewCardPresent())
  {
   return;
  }
  // Select one of the cards
  if ( ! mfrc522.PICC_ReadCardSerial())
  {
   return;
  }
  //Show UID on serial monitor
  Serial.print("UID tag :");
  String content= "";
  byte letter;
  for (byte i = 0; i < mfrc522.uid.size; i++)
  {
    Serial.print(mfrc522.uid.uidByte[i] < 0x10 ? " 0" : " ");
    Serial.print(mfrc522.uid.uidByte[i], HEX);
    content.concat(String(mfrc522.uid.uidByte[i] < 0x10 ? " 0" : " "));
    content.concat(String(mfrc522.uid.uidByte[i], HEX));
  }
  Serial.println();
  Serial.print("Message : ");
  content.toUpperCase();
  if (content.substring(1) == "XX XX XX XX") //change here the UID of the card/cards that you want to give access
  {
   digitalWrite(beep_pin,HIGH);
   delay(200);
   digitalWrite(beep_pin,LOW);
   delay(100);
   lcd.setCursor(0, 0);
   lcd.print("ID : ");
   lcd.print(content.substring(1));
   lcd.setCursor(0, 1);
   lcd.print("Authorized access");
   Serial.println("Authorized access");
   delay(1200);
  }
  else  {
   digitalWrite(beep_pin,HIGH);
   lcd.setCursor(0, 0);
   lcd.print("ID : ");
   lcd.print(content.substring(1));
   lcd.setCursor(0, 1);
   lcd.print("Access denied");
   Serial.println(" Access denied");
   delay(1500);
    }
 }
